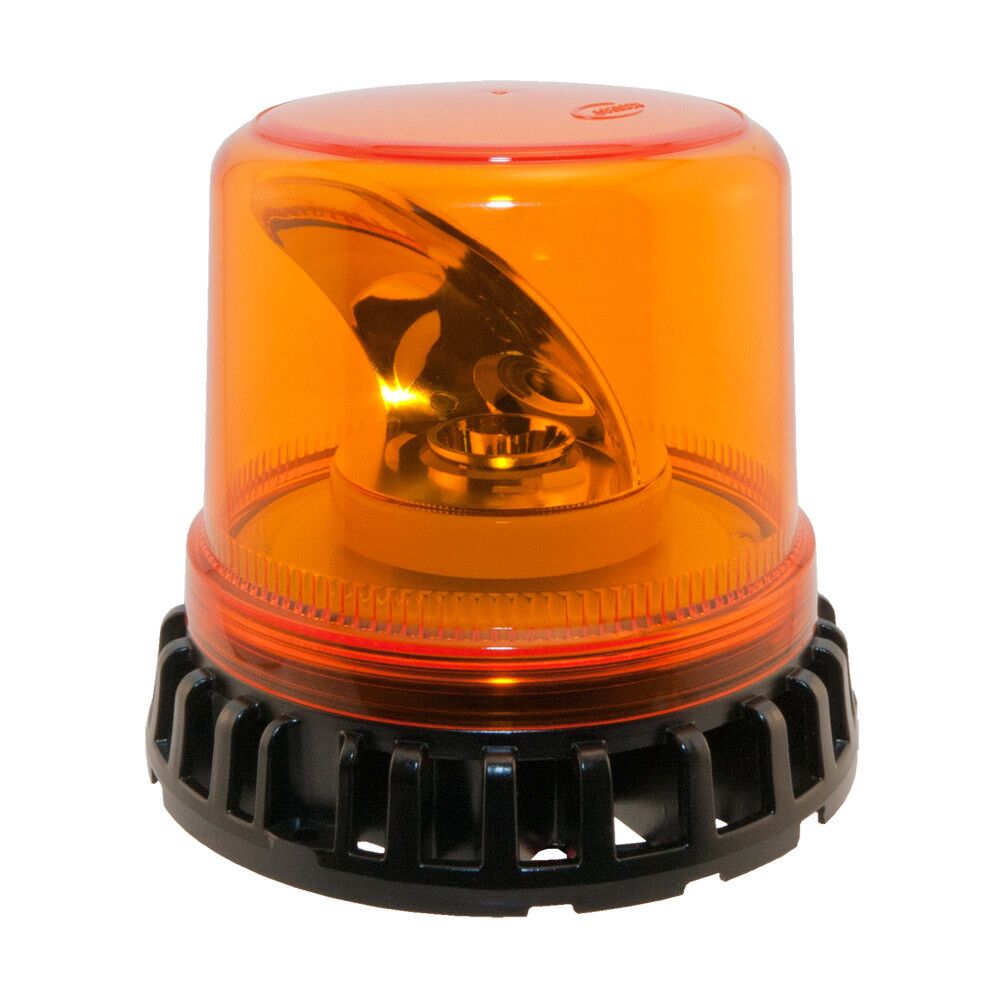

Titan LED Rotating Beacon
by ACOT500

A low profile beacon combining tried and tested rotator technology with the latest cutting edge LED technology.

Part Number: N/A Categories: , , Tag:


  • Low profile heavy duty beacon
  • CE and EMC/EMI Certified
  • Dust Resistant and Water Resistant
  • Operating voltage: 12-24 VDC
  • Direct Silicone Drive for quieter operation
  • 12 x 3 watt high powered LEDs
  • Polycarbonate UV stabilised lens
  • Aluminium base efficiently dissipates heat
  • Operating temperature: -25°C to 75°C
  • Current draw @ 12V: 1.8 Amps
  • Hardwire: Permanent mount without plug
  • Magnetic Base: with plug to suit standard automotive power outlet
  • Hardwire Dimensions: H141mm x D161mm
  • Magnetic Dimensions: H161mm x D161mm
  • Magnetic Base lead length: 4m
  • Speed Rating for Magnetic Base version: 120 km/h subject to appropriate mounting and road conditions

Additional information

Weight N/A
